Mavic build - mitchellbrink81
« on: February 06, 2017, 09:59:09 PM »
Hi everyone,

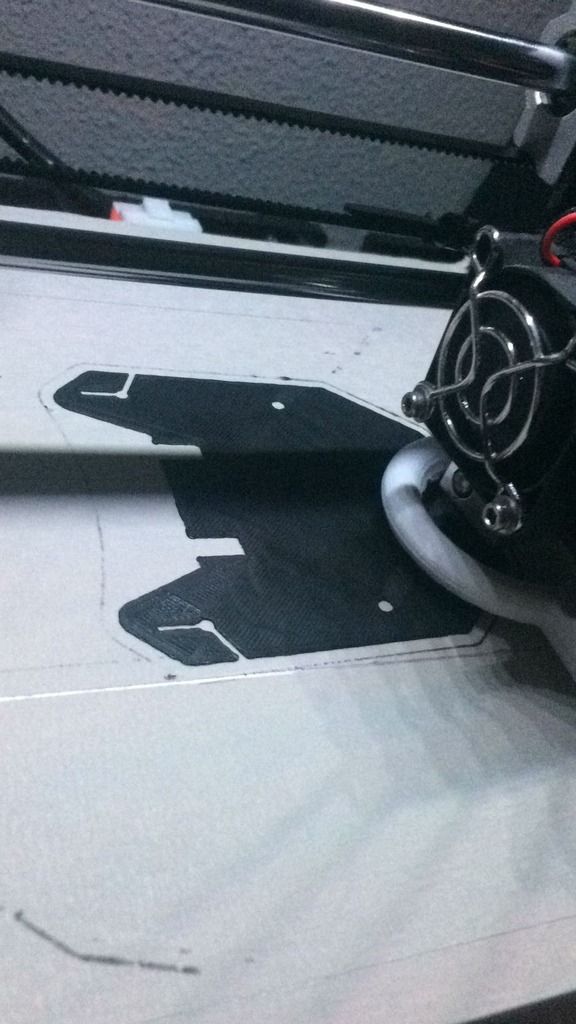

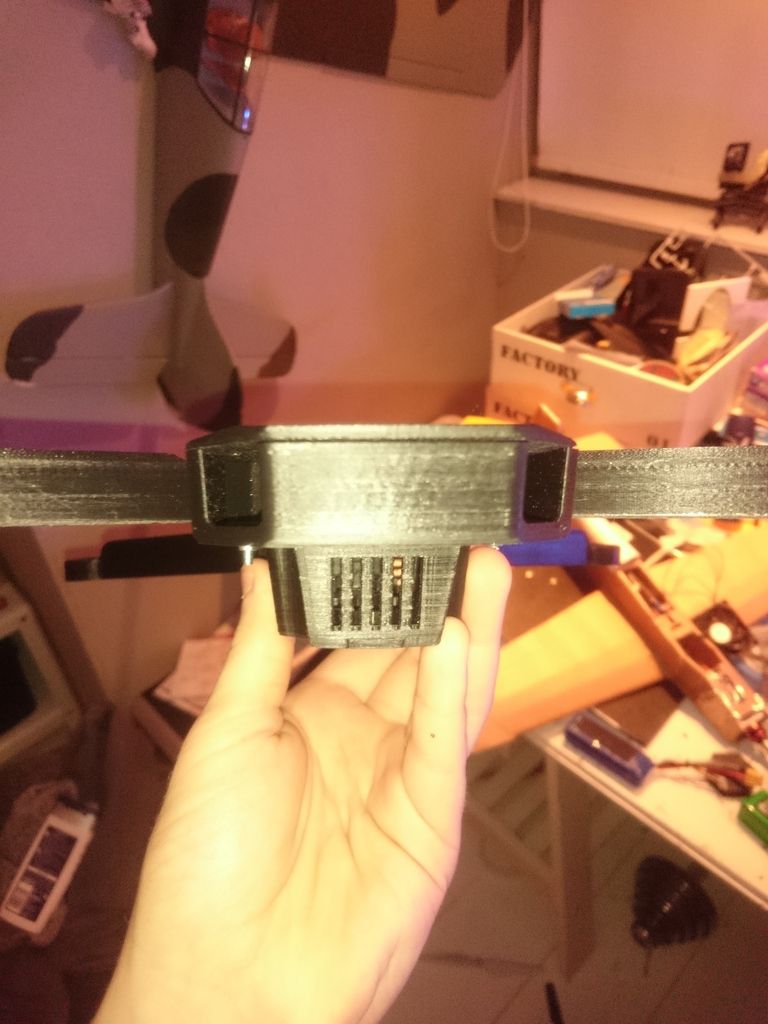

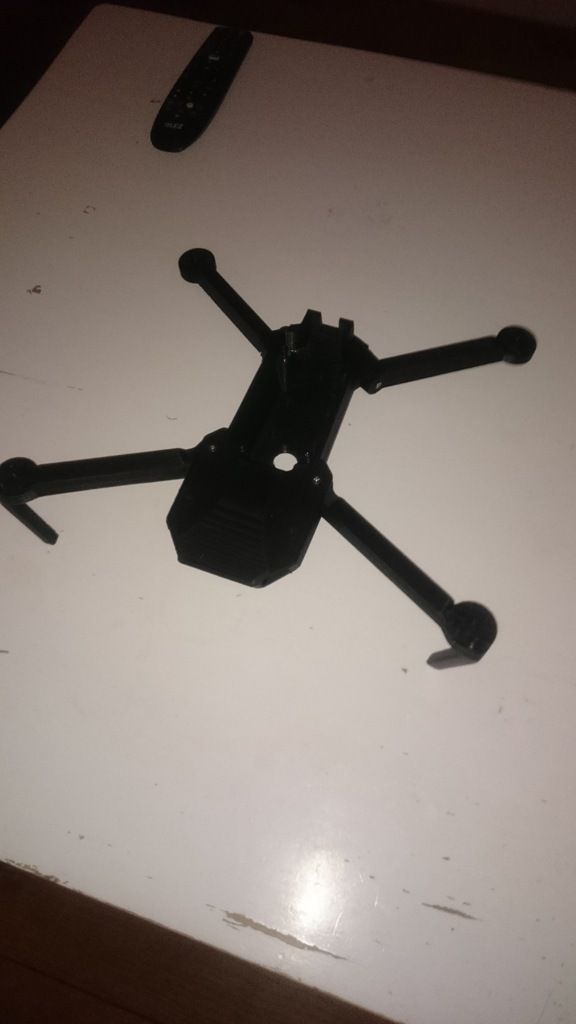

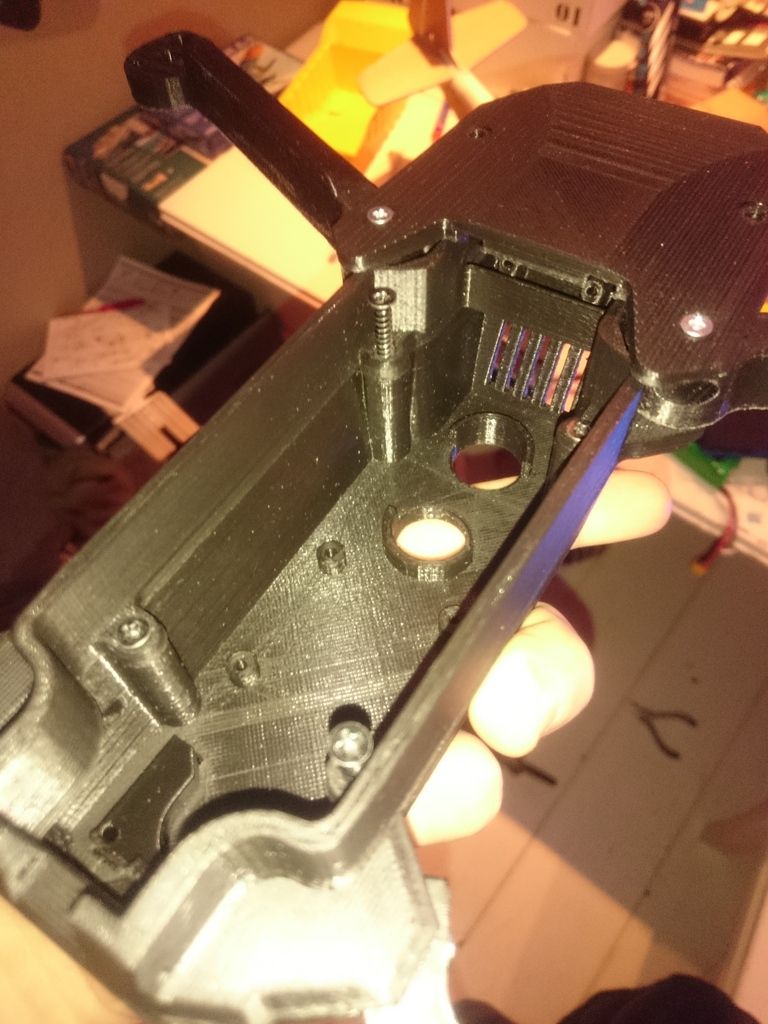

I'm almost finished with printing! Last part to be printed tommorow. Everything fits great! It's just an amazing design! Below some pics of how far I am. Printed everything at .2 layer height and 30% infill.
















Here are my specs for the build:

APM 2.5 with GPS and osd (want to add telemetry later)
920 kv dji style motors from dys
Turnigy i6
600mw video transmitter

I'm gonna design my own gimbal for my Denver ac-5030w action cam

Tommorow I'll be starting with the electronics.

Best regards,

Mitchell
« Last Edit: February 06, 2017, 10:11:43 PM by mitchellbrink81 »

Offline CdRsKuLL

  • Administrator
  • Master Builder
  • *****
  • Posts: 817
  • Karma: +50/-3
  • The fat dude
    • View Profile
Re: Mavic build - mitchellbrink81
« Reply #1 on: February 06, 2017, 10:53:22 PM »
Very nice.. Any reason you went with version 1?  If you are staying with that version you might need to reprint the arms and legs depending what motors you use. The ones I picked had the 16mm and 19mm holes reversed (version 2+). I also increased the hole down the arm by a bit and put an extra slot in underneath to help get the wires through.

I did think about just using the screw from the top to hold the middle to the base. Let me know how you get on as it would mean I could remove the 4 or even 6 holes from the bottom and have hidden fixings.

Looking good.. keep updating, I hope no one flys before I do.. lol ;-p

Steve
If you use any of my designs and can afford to donate to help pay for this site and the filament, or just buy me a beer then please click on the link below, enter an amount and donate what you want.


Offline 12382

  • Drinks Maker
  • *
  • Posts: 16
  • Karma: +0/-0
  • rookie
    • View Profile
Re: Mavic build - mitchellbrink81
« Reply #2 on: February 07, 2017, 05:26:21 AM »
Looking really good! Im excited to see how you plan on making a gimbal for the build!

Offline mitchellbrink81

  • Drinks Maker
  • *
  • Posts: 7
  • Karma: +0/-0
  • rookie
    • View Profile
Re: Mavic build - mitchellbrink81
« Reply #3 on: February 07, 2017, 11:46:13 AM »
Hi steve,

all my parts are actually version 2+ except my base. I'll be printing version 2+.
I had printed version 1 by accident so ill drill a hole for acces to the usb port, ones its flying correct ill put everything in base 2+.
at least this is my thought.

@12382 I'm still thinking hard in how to get it to fit. it'll be a 2 axis gimbal and i was thinking of printing a bracket to the nose for the roll motor.

best regards,


Mitchell
