3d Printed Inspire Clone / Re: dji E800 Power System
« on: February 19, 2016, 04:44:44 PM »

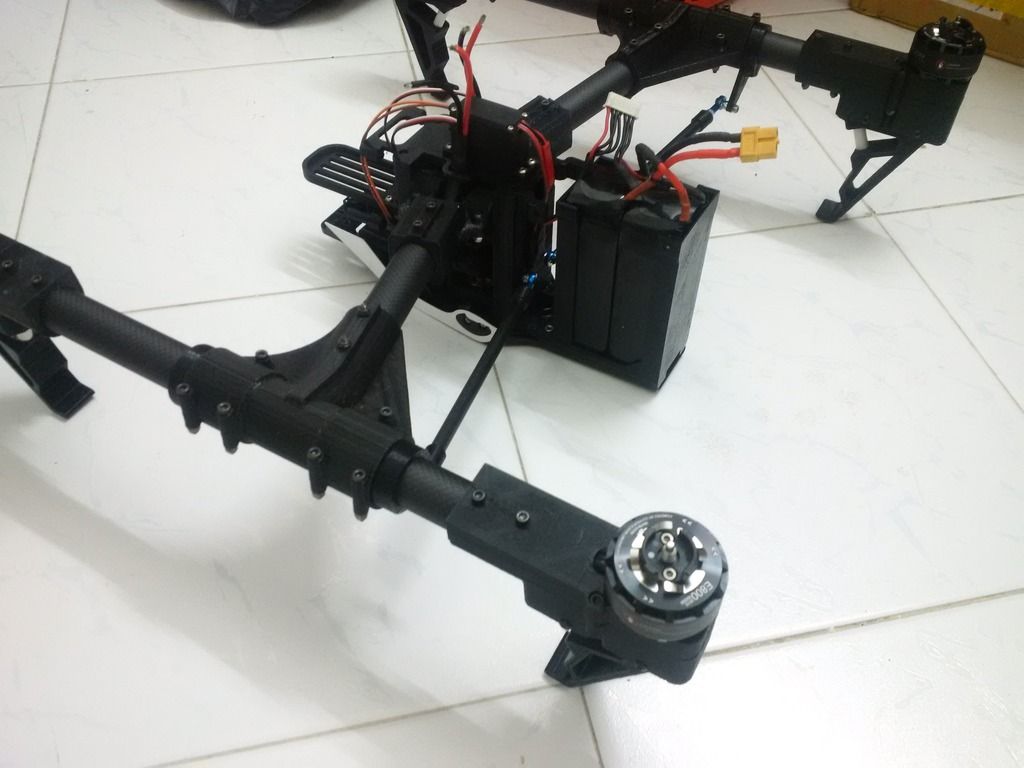

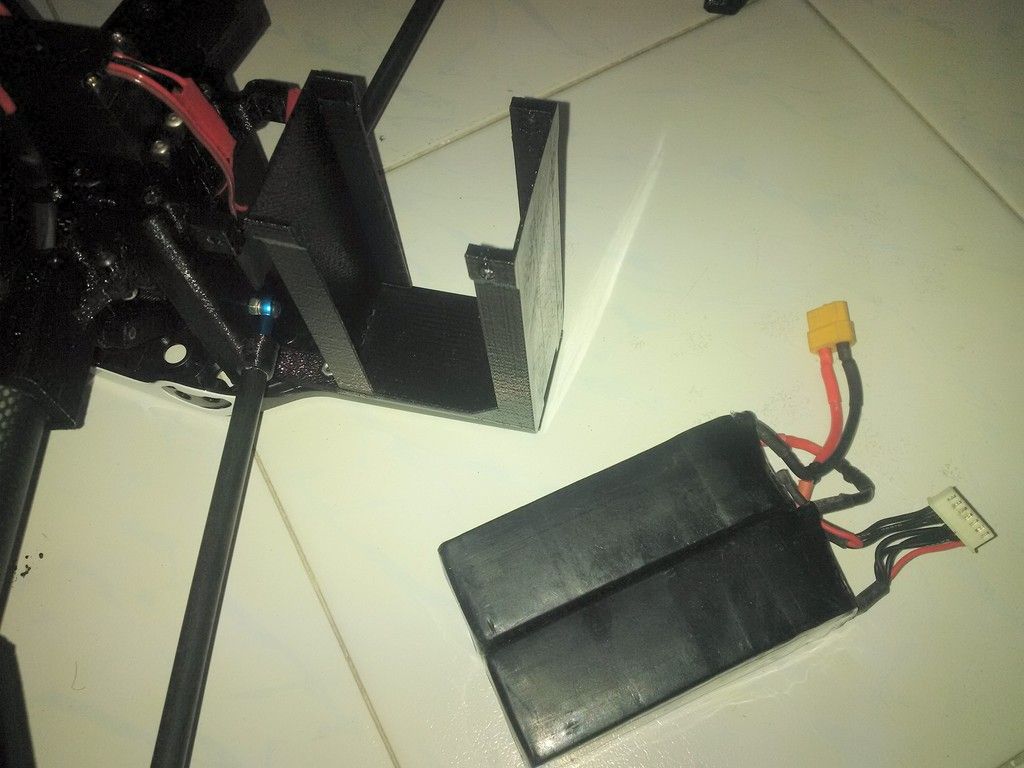

you can use 2 packs "MultiStar High Capacity 3S 5200mAh Multi-Rotor Lipo Pack for QR X350 PRO"

and build : 6S2P - 5200mah 6s 10C

and last dimensions : 67*43*110mm (this pack size is same the original Inspire 1 baterry).

photo IMG_20160219_234735_zpsnclyq40m.jpg

photo IMG_20160219_235357_edit_zpsip950kqe.jpg

3rd Party parts / New GPS mount
« on: August 21, 2015, 04:06:48 PM »
share for everyone, GPS mount of Inspire clone

If placed gps module on top of the shell, motor of servo would seriously interfere compass ! so I moved it to the back

this part can fix with part "center back battery clamp" of Steve

I was attached file STL  below

Here is the picture for the position gps module

photo IMG_20150816_110653_zpsmcquqrg5.jpg

Inspire Build Diaries / Re: My first build INSPIRE 1 (Finished)
« on: August 16, 2015, 03:29:05 PM »
Final test fight :

Flight time     : 12 min (with 5000mah 4s 20c Turnigy)
Total Weight : 2.450g

photo IMG_20150816_110628_zpsyuwlpru2.jpg

photo IMG_20150816_111722_zpsmcmwhedo.jpg

Inspire Build Diaries / Re: My first build INSPIRE 1 (Finished)
« on: August 15, 2015, 07:46:03 AM »
soem pictures


Inspire Build Diaries / Re: My first build INSPIRE 1 (Finished)
« on: August 06, 2015, 07:28:01 AM »
thanks everybody
My Specs :
Motor : sunnysky 3508 580kv
ESC : hobbywing Xrotor 40A opto
Battery : Turnigy 5000mah 4s 20c hardcase
Propeller : tarot 12x5.5
Controller : Naza V1 w/ GPS

First flight !

Finished !

photo 11010293_1159710970709649_8460870867590551581_n_zps0yg5mdtq.jpg

photo 11822698_1159710964042983_1467538527655637428_n_zpsrpmbkame.jpg

photo 11019835_1159710967376316_5676693184237438520_n_zpsvfhgz0ra.jpg

photo 10984994_1159712570709489_2084419310045658534_n_zpsotp73o7w.jpg

I used Sunnysky X3508S 580kv & ESC Hobbywing Xrotor 40A OPTO

photo IMG_20150801_003654_zpsxkdqcpb7.jpg

photo IMG_20150801_005022_edit_zps8wckouqt.jpg

and next.... i changed 12mm carbon tube and bearing HK1210 for the part "inner led housing", because I had available 12mm carbon tube

photo IMG_20150729_001435_zpsavpe1qm5.jpg

photo IMG_20150728_232213_zps0utzitbh.jpg

photo IMG_20150728_230725_zpswckqpcvw.jpg

3rd Party parts / Re: New "center bottom plate"
« on: July 29, 2015, 03:13:33 PM »
before and after printed

3rd Party parts / New "center bottom plate"
« on: July 29, 2015, 03:10:10 PM »
Share new "center bottom plate" and  "center bottom battery plate"
this option with bearing smaller :  8x16x10
and needle roller bearing HK1210 (12x16x10) compare with 12mm carbon tube

and it 's like that

photo IMG_20150728_140105_edit_zps0fxyqdkc.jpg

Share with everyone a new landing gear, i design is based on "outer leg foot" of Steve, it can fix with part "motor housing bottom"

3d Printed Inspire Clone / Re: Inspire Clone Electronics
« on: July 20, 2015, 04:24:18 AM »
Hi Steve,
i have an idea for retractable, instead ardruino, can use "Tarot Electric Retractable Landing Gear Tripod Controller"
This board is reading the current feedback (proportional voltage) from the H-Bridge. This current measurement is used to determine end positions of both actuators, rather than implementing complicated limit switches. i think this way 's simple and cheaper ardruino.

i will try for my build :D

photo Capture_zpsvpp11qdm.jpg

this 's my frame, everything so good, but bearing 608ZZ not fix to part, i'm fixing by grinder tool... :(

frame so heavy.. :D

photo 11755191_1149551631725583_694857377804579770_n_zpsbctnkmqt.jpg

photo IMG_20150718_195630_zpsr2lgjuzt.jpg
