1
3rd Party parts / New GPS mount
« on: August 21, 2015, 04:06:48 PM »
share for everyone, GPS mount of Inspire clone

If placed gps module on top of the shell, motor of servo would seriously interfere compass ! so I moved it to the back

this part can fix with part "center back battery clamp" of Steve

I was attached file STL  below

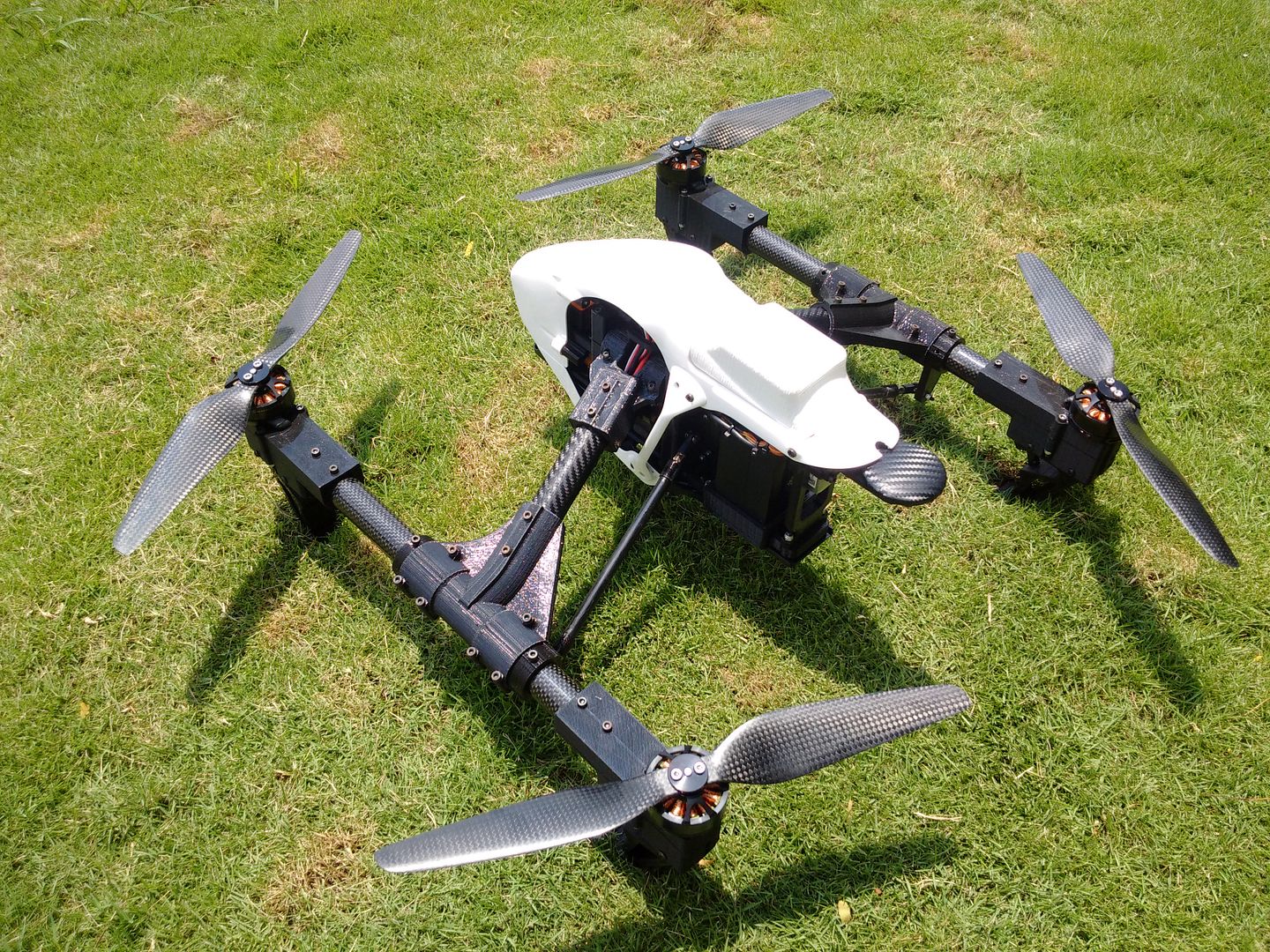

Here is the picture for the position gps module


photo IMG_20150816_110653_zpsmcquqrg5.jpg


2
3rd Party parts / New "center bottom plate"
« on: July 29, 2015, 03:10:10 PM »
Share new "center bottom plate" and  "center bottom battery plate"
this option with bearing smaller :  8x16x10
and needle roller bearing HK1210 (12x16x10) compare with 12mm carbon tube

3
Inspire Build Diaries / My first build INSPIRE 1 (Finished)
« on: July 14, 2015, 12:16:27 PM »
Finished ! thanks Steve


video : https://www.youtube.com/watch?v=NBYUGPf_UC0




Plan designed by CdRsKuLL, Thanks for share ! I love it  :)

And this my first part : Motor housing & outer leg foot
I printed 3D with PLA black, Fill density 30%, layer heigh 0.3mm


photo 11538977_1146030752077671_2162828794554594759_o_zpsd79aazik.jpg

photo 11222065_1146030858744327_6011608669804995244_n_zpsp1v00rga.jpg

photo 11743005_1146030868744326_3157282654671870063_n_zps6jjz5cmc.jpg

photo 11745929_1146030735411006_9175156686401061862_n_zpsye4cs4zq.jpg

I will update progress every week  ;) ....

Thank you !
